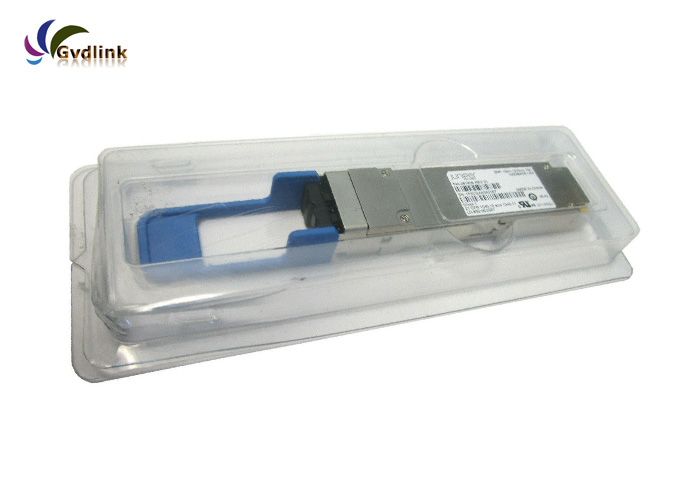

Juniper Networks JNP-QSFP-100G-LR4 Compatible 100GBASE-LR4 QSFP28
1310nm 10km DOM LC SMF Optical Transceiver Module
The QSFP28 module provides 100GBase-LR4 throughput up to 10km over
a standard pair of single mode fiber (SMF) with duplex LC
connectors. Taking BOX+FPC+PCBA separate design, it has great
reliability, airtightness and heat dissipation performance. This
transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE
802.3bm, SFF-8665 and SFF-8636 standards. Digital diagnostics
functions are also available via the I2C interface, as specified by
the QSFP28 MSA, to allow access to real-time operating parameters.
With these features, this easy to install, hot swappable
transceiver is suitable to be used in various applications, such as
100G telecom connections, data center, high-performance computing
networks, enterprise core and distribution layers, campus networks
etc.
Description
| item | Description |
| Part number | JNP-QSFP-100G-LR4 |
| Version support | Supported in V200R001C00 and later versions |
| Transceiver form factor | QSFP28 |
| Transmission speed | 100GE |
| Center wavelength (nm) | 1295, 1300, 1304, 1309 |
| Standards compliance | 100GBASE-LR4 |
| Connector type | LC |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| Applicable cable and maximum transmission distance | Single-mode fiber (G.652) (with diameter of 9 μm): 10 km |
| Modal bandwidth | - |
| Transmit power (dBm) | -4.3 to +4.5 |
| Maximum receiver sensitivity (dBm) | -8.6 |
| Overload power (dBm) | 4.5 |
| Extinction ratio (dB) | ≥ 2 |
| Operating temperature | 0°C to 70°C |
Applications
Fully compatible with almost all Juniper devices
OTN OTU4 Metro Area Networks
100G telecom, data center, high-performance computing network,
campus network
JUNIPER compatible QSFP28 100G Product series
| JUNIPER Model | Description |
| JNP-QSFP-100G-LR4 | 100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF |
| JNP-QSFP-100G-PSM4 | 100GBASE-PSM4 QSFP28 1310nm 500m DOM MTP/MPO SMF |
| JNP-QSFP-100G-SR4 | 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF |
| JNP-QSFP-100G-CWDM4 | 100GBASE-CWDM4 QSFP28 1310nm 2km LC SMF |
| JNP-QSFP-100G-4WDM | 100GBASE-4WDM-10 QSFP28 1310nm 10km DOM LC SMF |
| JNP-QSFP-100G-ER4 | 100GBASE-ER4 QSFP28 1310nm 40km DOM LC SMF |
| QSFP28-LR4-100/112G | 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 10km LC SMF |
| QSFP28-LR4-100/112G-20 | 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 20km DOM LC
SMF |
| QSFP28-ER4-100/112G | 100GBASE-ER4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 40km DOM LC
SMF |
Guarantee
We provide 3 years warranty for all the optical transceivers from
the date of shipment .
Our products are compatible with Cisco , Ciena , H3C , Extreme ,
Foundry , Mellanox , Avaya , D-link , Alcatel , Riverstone ,
Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei ,
etc .
