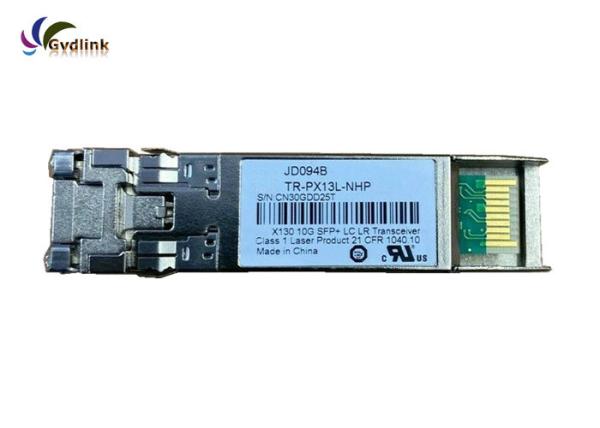

JD094A JD094B 455888-001 HPE Compatible SFP+ 10G LR 1310nm 10km DOM LC SMF Transceiver Module
JD094A is a high performance, cost-effective modules, which is optimized for 10G Ethernet, supporting data-rate of 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW), and transmission distance up to 300m on 50µm MMF(2000MHz·km)

Features

• Functionally similar to J9151A 455886-B21 10GBase-LR SFP+ 10km LC SM Transceiver

• LC Port
• Hot-pluggable
• Compliant with SFP+ MSA
• Compliant with IEEE 802.3ae-2002
• Support Multi-Rate 1.25-10.709Gbps
• 850nm VCSEL and PIN receiver
• Up to 300m transmission distance on 50µm MMF (2000MHz·km)
• 2-wire interface for integrated Digital Diagnostic monitoring
• SFP+ MSA package with duplex LC connector
• Operating case temperature: 0~+70 Centigrade

Our Normal SFP+ compatible HPE product series

Our product line show

Shenzhen Gaveid communication Technology Co.,Ltd was founded in 2008 . We design , develop , manufacture and distribute the optical product to satisfy customer 's need for optical communication in Ethernet , SDH/SONET , Video monitor , FTTH , telecommunication , CATV system etc . Currently Gvdlink can offer the complete product lines including SFP , SFP+ , XFP , QSFP , DWDM , CWDM etc., From 155M~100G optical fiber transceiver , And DWDM , CWDM MUX/DEMUX Passive solution , We also provide cable , optical cord , network card and POE switch for the networking sulotion . We provide to our customers with our high-performance , cost-effective products to fulfill their requirements , contributing this way to the customer ' s success and satisfaction .
