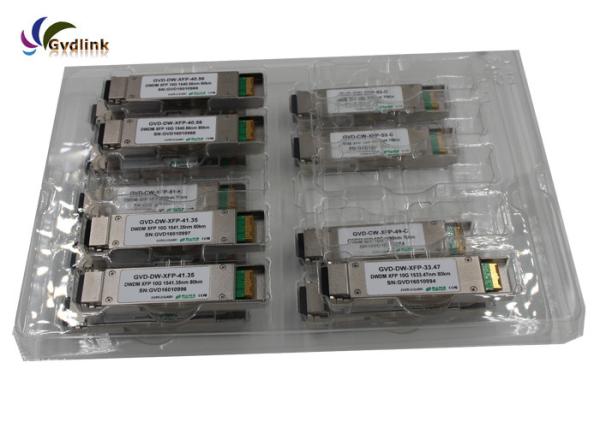

ONS-XC-10G-30.3 Compatible CH59 10G DWDM XFP 100GHz 1530.33nm 80km Transceiver

GVD-DW-XFP-30.33 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10Gb/s, it designed to be compliant with XFP MSA. The module data link up to 10km in 9/125um single mode fiber.The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Features

• Suitable for use in 100GHz channel spacing DWDM systems
• XFP MSA Compliant

• Wavelength selectable to C-band ITU-T grid wavelengths

• SONET SDH OC-192 / STM-64
• Cold Start up Wavelength Compliance

• DWDM-rated EML transmitter and APD receiver

• Link length up to 80km
• with CDR function
• Low Power Dissipation 3.5W Maximum
• -20ºC to 70ºC Operating Case Temperature
• RoHS compliant and lead free

Quick View

​Our DWDM product series

" xx.xx " meaning the wavelengths , Such as " xx.xx=61.43 "

All Wavelength and DWDM Channel

Advantages

• High Quality with ISO9001 , CE , TUV , FCC and RoHS certificates
• Fully product line
• 100%tested
• 3 year Warranty
• very fast delivery

Applications

Access networks : 10Gbps Ethernet or Sonet SDH switches and routers

Digital video and Closedcircuit television(CCTV)

other 10Gbps optical links

OEM and ODM

OEM and ODM order all are available .

we can supply products according to your requirements , and design products label for your company .

Shipment

International Express DHL , UPS , SF , EMS , TNT , FedEx and so on . It takes 1-7 days.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts all new materials . All the optical transceivers have been passed functional test and aging test . We will provide 3 year warranty for all the optical transceivers from the date of shipment .

What we supply

We supply wide range of high quality optical transceivers and passive CWDM/DWDM Mux/Demux modules. Our products are compatible with

with Cisco , Huawei , H3C , Ciena , HP , Extreme ,Avaya , Foundry , Alcatel , D-link , Riverstone , Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , etc .

Our product line show

FAQ

Q: Do you have any MOQ?
A: No, we don't set any MOQ.

Q: Can I get any discount?
A: Yes, Price could be negotiated based on the quantity.

Q: What is the lead time?
A: For usual products, we keep stock, could ship 1-3 days after PO. For big quantity and special compatibility products,please check lead time with our sales representative.

Q: What is your warranty time?
A: Warrranty time is 3 years.
This warranty does not cover damage caused by man-made damage,improper care/use, negligence,and force majeure such as natural disasters,earthquakes,fires,etc.

Q: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL,UPS,FedEx or TNT. It usually takes 3-5 days to arrive.

Q: What compatible we could do?
A: Nearly all compatible we can make,please let us know the switch type you use when you send us an order, or we will send you a neutral type.

Shenzhen Gaveid communication Technology Co.,Ltd was founded in 2008 . We design , develop , manufacture and distribute the optical product to satisfy customer 's need for optical communication in Ethernet , SDH/SONET , Video monitor , FTTH , telecommunication , CATV system etc . Currently Gvdlink can offer the complete product lines including SFP , SFP+ , XFP , QSFP , DWDM , CWDM etc., From 155M~100G optical fiber transceiver , And DWDM , CWDM MUX/DEMUX Passive solution , We also provide cable , optical cord , network card and POE switch for the networking sulotion . We provide to our customers with our high-performance , cost-effective products to fulfill their requirements , contributing this way to the customer ' s success and satisfaction .
