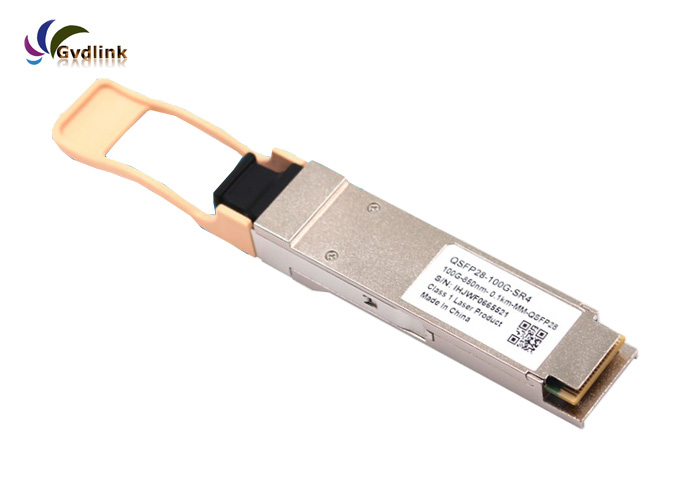

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Transceiver

Description

Gvdlink QSFP-100G-SR4-S 100G QSFP28 SR4 optical transceivers are widely used in Data Centers , 5G Fronthaul , OTN and SAN . The 100G QSFP28 SR4 portfolio includes 100GE QSFP28 SR4 , 100GE/CPRI QSFP28 SR4 , 100GE QSFP28 eSR4 , OTU4/128GFC QSFP28 SR4 , and OTU4/128GFC QSFP28 eSR4+

Features

• Hot-pluggable QSFP28 form-factor

• 4 channels full-duplex transceiver module

• Transmission data rate up to 25Gbps per channel

• Support 40GE and 56G FDR data rate

• 4 channels 850nm VCSEL array

• 4 channels PIN photo detector array

• Internal CDR circuits on both receiver and transmitter channels
• Support CDR bypass
• Low power consumption < 2.5W
• Hot Pluggable QSFP form factor

• Maximum link length of 70m/100m on OM3/OM4 MMF

• Single MPO connector receptacle

• Operating case temperature 0°C to +70°C

• 3.3V power supply voltage

• RoHS compliant (lead free)

Advantages

• Fully product line
• High Quality with ISO9001 , TUV , CE , FCC , UL and RoHS certificates

• 100%tested

• very fast delivery

Applications

• 100G Ethernet Data Center Networks

• other 100G QSFP Networks
