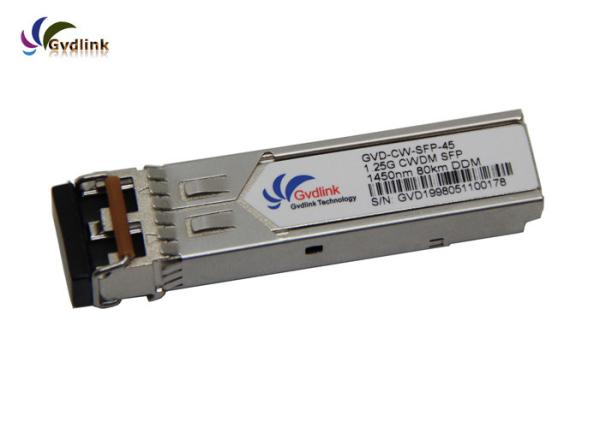

CWDM-SFP-45 Compatible CWDM SFP 1.25G 1450nm 80km DOM transceiver

SFP Fiber Transceiver Module Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gb/s and 80km transmission distance with SMF. The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Gvdlink CWDM SFP 80km small form-factor pluggable (SFP) is a coarse WDM optical transceiver used in optical communications for both telecommunication and data communications applications on the CWDM channels as followings
CWDM SFP 1270 , CWDM SFP 1290 , CWDM SFP 1310 , CWDM SFP 1330 ,
CWDM SFP 1350 , CWDM SFP 1370 , CWDM SFP 1390 , CWDM SFP 1410 ,
CWDM SFP 1430 , CWDM SFP 1450 , CWDM SFP 1470 , CWDM SFP 1490 ,
CWDM SFP 1510 , CWDM SFP 1530 , CWDM SFP 1550 , CWDM SFP 1570
CWDM SFP 1590nm , CWDM SFP 1610nm

SFP Fiber Transceiver Module Features

• 18 Wavelength Channel frequency : 1270nm to 1610nm CWDM 20nm Spacing
• By 100Mb 1.25Gb 2.5Gb 4.25Gb~10Gb speed rates
• Small Form-Factor Pluggable (SFP) MSA compatible
• Compliant with IEEE 802.3z Gigabit Ethernet 1000BASE-ZX
• Compliant with Fibre Channel 1X SM-LC-L FC-PI
• Up to 24dB dB Power Budget
• With CWDM MUX as a CWDM system
• Hot Pluggable

SFP Fiber Transceiver Module Advantages

• High Quality with ISO9001 , TUV , CE , FCC , UL and RoHS certificates

• Full product line

• 100%tested

• fast delivery

• 3 year Warranty

SFP Fiber Transceiver Module Applications

• Tri Rate 1.0625 / 2.125 / 4.25Gbp/s Fiber Channel

• 1.25 Gb/s 1000 BASE Ethernet
• CWDM MUX/DEMUX System

Our CWDM SFP product series

XX: 45=1450nm
