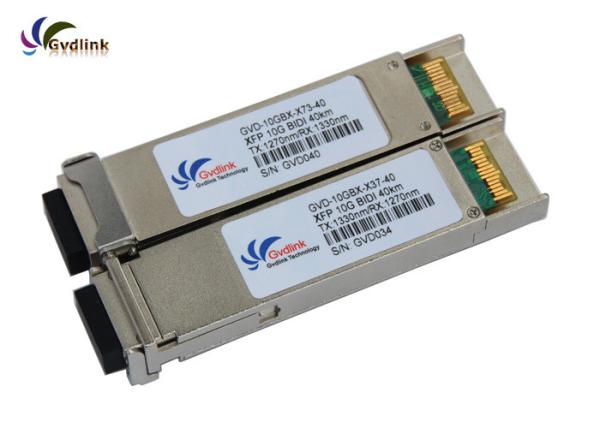

XFP-10G-BX40U-I compatible 10G XFP BIDI Single fiber 1270nm/1330nm 40KM Transceiver

GVD-XFP-BX40U-I is hot pluggable XFP Bi-Directional transceiver module, which is designed for 10Gb/s duplex optical data communications application. The XFP BIDI module features a highly reliable 1270nm DFB transmitter and 1330nm PIN photo-detector into single LC optical connector, which provides 40km link distance over single-strand single mode fiber.

This XFP BIDI transceiver module also provides digital diagnostic monitoring interface(DDMI), which providing real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. The transceiver module complies with XFP MSA Rev 4.5 specifications, 10 Gigabit Ethernet specifications (10GBASE-LR/LW per IEEE 802.3ae ), and 10G Fibre Channel (1200-SM-LL-L). The transceiver is also a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Features

• type: DFB TX1270nm PIN RX1330nm, DFB TX1330nm PIN RX1270nm

• Operating data rate up to 10.3Gbps

• Distance up to 40km

• Simpex LC Connector Interface

• Single 3.3V Power supply and TTL Logic Interface

• Hot Pluggable

• Operating Case Temperature

• Standard: 0 0 C ~ +70 0 C

• Industrial: -40 0 C ~ +85 0 C

• Compliant With MSA SFP Specification

• DDM function

Advantages

• Full product line

• High Quality with ISO9001, TUV, CE, FCC, UL and RoHS certificates
• 100%tested
• 3 year Warranty

• fast delivery

Applications

• 10G Channels

• Other 10Gbps Networking Optical links

• Networking , Storage, Telecommunications

• Hub, Switches, Routers, Servers, Network Interface Card (NICs)
