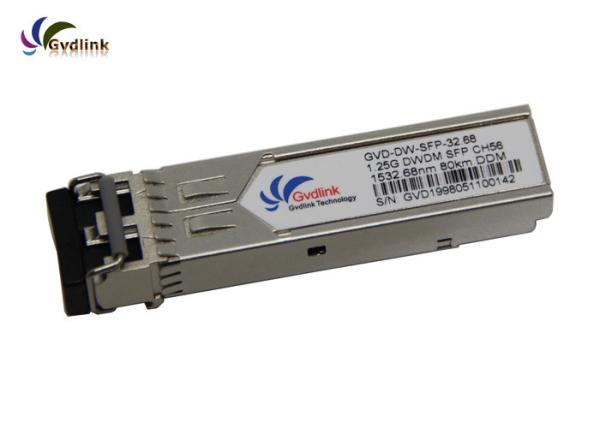

DWDM-SFP-32.68 Compatible 1.25G DWDM SFP 1532.68nm 80km Transceiver

Description

Gvdlink DWDM SFP Transceiver exhibits excellent wavelength stability , supporting operation at 100 GHz channel , cost effective module . It is designed for DWDM SONET/ SDH , Gigabit Ethernet and Fiber Channel applications . The transceiver consists of two sections : The transmitter section incorporates a colded DFB laser . And the receiver section consists of a APD photodiode integrated with a TIA . All modules satisfy class I laser safety requirements . Gvdlink DWDM SFP transceiver provides an enhanced monitoring interface , which allows real-time access to device operating parameters such as transceiver temperature , laser bias current , transmitted optical power , received optical power and transceiver supply voltage , laser temperature and TEC current.

Features

• Wavelength selectable to C-band ITU-T grid wavelengths

• Suitable for use in 100GHz channel spacing DWDM systems

• DWDM SFP MSA Compliant

• Up to 2.67Gb/s data rate
• OC48 Long Reach 120km
• Cold Start up Wavelength Compliance
• Low Power Dissipation <1.3W Maximum
• -5ºC to 70ºC Operating Case Temperature

• Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power, laser temperature and TEC current

• Extended link budget with APD receiver technology

• RoHS compliant and lead free

​Our SFP DWDM product series

"xxxx" meaning the wavelengths , example"xxxx=1532.68"

Advantages

• High Quality with ISO9001 , TUV , CE , FCC , UL and RoHS certificates

• Fully product line

• 100%tested
• 3 year Warranty
• very fast delivery

Applications

• SFP Transceivers for DWDM SONET/ SDH

• Networking , Storage , Telecommunications

• Hub , Switches , Routers , Servers , Network Interface Card (NICs)`

• Other 1.25Gbps DWDM Networking Optical links

OEM and ODM

OEM / ODM order is available

we can supply products according to your requirements, and design products label for your company .

Shipment

International Express DHL , SF , FedEx , ARAMEX , TNT , UPS ,EMS , and so on . It takes 3-7 days.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts all new materials . All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we focus

We focus on all kinds of compatible optical transceiver modules , including GBIC , SFP , SFP+ , XFP , XENPAK , X2 , BIDI , CWDM,DWDM and other special transceiver modules . Our products are compatible with Cisco , Ciena , H3C , Extreme , HP , Foundry , D-link , Avaya , Alcatel , Riverstone , Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei , etc .

Our product line show

FAQ

Q1. Can I have a sample order for this product? What' MOQ of it?
A:Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 2-3 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping
also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

Shenzhen Gaveid communication Technology Co.,Ltd was founded in 2008 . We design , develop , manufacture and distribute the optical product to satisfy customer 's need for optical communication in Ethernet , SDH/SONET , Video monitor , FTTH , telecommunication , CATV system etc . Currently Gvdlink can offer the complete product lines including SFP , SFP+ , XFP , QSFP , DWDM , CWDM etc., From 155M~100G optical fiber transceiver , And DWDM , CWDM MUX/DEMUX Passive solution , We also provide cable , optical cord , network card and POE switch for the networking sulotion . We provide to our customers with our high-performance , cost-effective products to fulfill their requirements , contributing this way to the customer ' s success and satisfaction .
