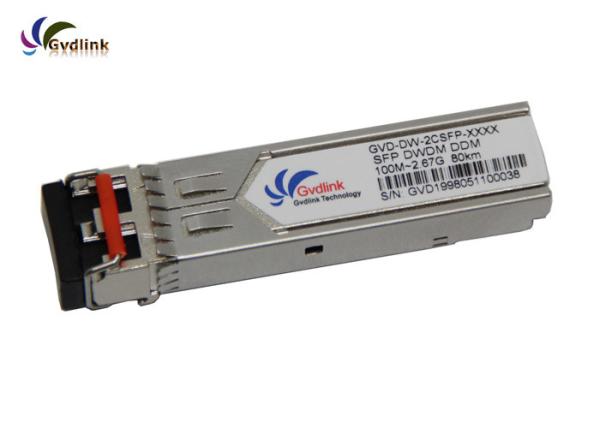

DWDM-2CSFP-xxxx Compatible 155M~2.67G DWDM SFP 80km Transceiver

Description

Gvdlink DWDM SFP Transceiver exhibits excellent wavelength stability , supporting operation at 100 GHz channel , cost effective module . It is designed for DWDM SONET/ SDH , Gigabit Ethernet and Fiber Channel applications . The transceiver consists of two sections : The transmitter section incorporates a colded DFB laser . And the receiver section consists of a APD photodiode integrated with a TIA . All modules satisfy class I laser safety requirements . Gvdlink DWDM SFP transceiver provides an enhanced monitoring interface , which allows real-time access to device operating parameters such as transceiver temperature , laser bias current , transmitted optical power , received optical power and transceiver supply voltage , laser temperature and TEC current.

​Our SFP DWDM product series

"xxxx" meaning the wavelengths , example"xxxx=1558.17"

Features

• all Wavelength selectable to C-band ITU-T grid wavelengths

• Suitable for use in 100GHz channel spacing DWDM systems

• DWDM SFP MSA Compliant

• Up to 2.67Gb/s data rate
• OC48 Long Reach 80km
• Cold Start up Wavelength Compliance
• Low Power Dissipation <1.3W Maximum
• Extended link budget with APD receiver technology
• -5ºC to 70ºC Operating Case Temperature

• Diagnostic Performance Monitoring of module temperature , supply Voltages , laser bias current , transmit optical power , receive optical power , laser temperature and TEC current

• RoHS compliant and lead free

Applications

• SFP Transceivers for DWDM SONET/ SDH

• Networking , Storage , Telecommunications

• Hub , Switches , Routers , Servers , Network Interface Card (NICs)`

• Other 2.5Gbps DWDM Networking Optical links
