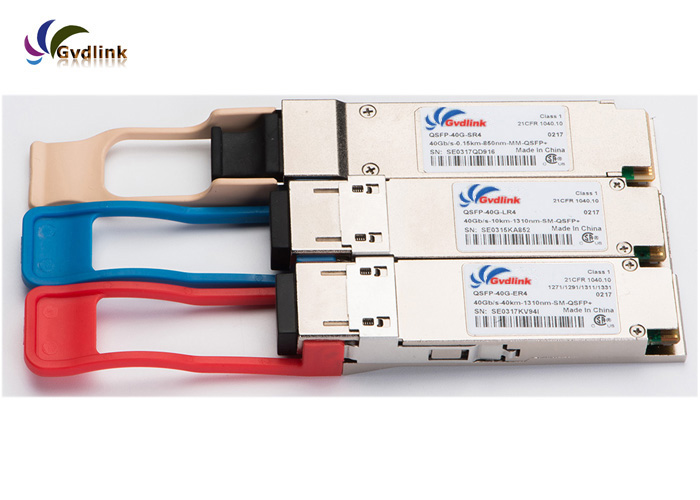

QSFP-40G-ER4 Compatible 40GBASE-ER4 QSFP+ 1310nm 40km LC DOM Optical Transceiver Module

Description

Gvdlink 40G QSFP+ ER4 optical transceiver module is designed for 40GBASE-ER4 Ethernet and OTN OTU3/OTU3e1/OTU3e2 links reach up to 40km over SMF

Features

• Hot-pluggable QSFP+ form factor

• Supports 39.8 Gb/s to 44.6 Gb/s

• 18.5 dB link insertion loss budget

• Single 3.3V power supply

• Maximum link length of 40km on SMF

• Uncooled 4x10Gb/s CWDM transmitter

• XLPPI electrical interface
• Duplex LC receptacles
• Operating case temperature range: 0 to 70°C

• 3.5W maximum power dissipation

• RoHS 6 compliant (lead free)

Applications

• OTN OTU3 Metro Area Networks

• 40GBASE-SR4 Ethernet Data Center Networks

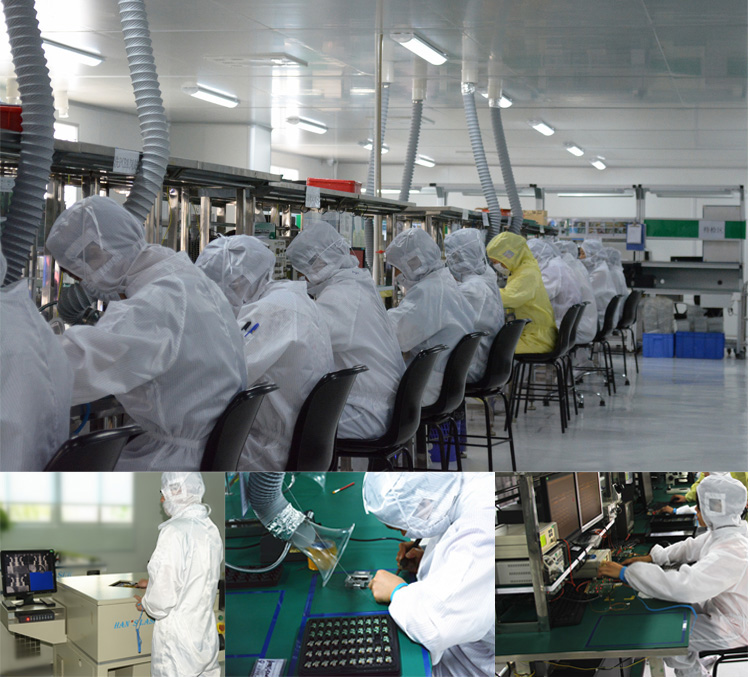

Our factory show case

cefitication

Product line show

Introduce

Gaveid communication Technology Co.,Limited ( Gvdlink Technology), Founded in 2008. Our company has been serving customers in the business tenet and business philosophy of “high quality and excellent sales service”, winning unanimous praise and recognition of peers.

Shenzhen Gaveid communication Technology Co.,Ltd was founded in 2008 . We design , develop , manufacture and distribute the optical product to satisfy customer 's need for optical communication in Ethernet , SDH/SONET , Video monitor , FTTH , telecommunication , CATV system etc . Currently Gvdlink can offer the complete product lines including SFP , SFP+ , XFP , QSFP , DWDM , CWDM etc., From 155M~100G optical fiber transceiver , And DWDM , CWDM MUX/DEMUX Passive solution , We also provide cable , optical cord , network card and POE switch for the networking sulotion . We provide to our customers with our high-performance , cost-effective products to fulfill their requirements , contributing this way to the customer ' s success and satisfaction .
