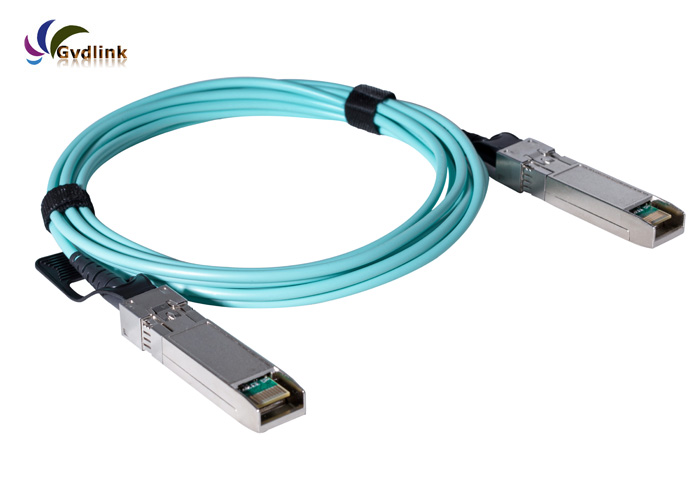

SFP-10G-AOC1M CISCO Compatible 10G SFP+ Active Optical Cable 1m

Description

The GVD-SFP-10G-AOC1M is SFP+ active optical cables (AOC) for 10Gb Ethernet (10GbE) applications. The 10G SFP+ AOC cables provide an ideal alternative solution to SFP+ direct attach copper cables (DAC) and SFP+ transceivers of short reach while providing improved signal integrity, exceptional cost, and performance value. They are designed expressed for high speed, high density and low power consumption for today’s data center networking applications.

The SFP+ AOC cables are composed of SFP+ optical transceivers in both ends and OM3 multimode fiber cable in different cable length from 1 to 100 meters. This integrated optical transceiver removes the complicated optical fiber interface and brings a friendly and intuitive electrical-to-electrical interface to users.

Gvdlink 10G SFP+ AOC is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20-contact edge type connector. 1m

Features

• Data rate up to 10.3Gbps
• Hot-pluggable SFP+ form-factor connectors
• 850nm VCSEL laser and PIN photo-detector

• Compliant with SFP+ MSA and IEEE 802.3ae 10GBASE-SR

• Length up to 300m over OM3 MMF,leagth is 1m

• Power consumption < 1W per end

• Operating case temperature range from 0°C to 70°C
• 3.3V power supply voltage
• RoHS compliant (lead free)

​Our SFP 10G Active Optical cables product series

Applications

• 10GBASE-SR Ethernet

• 4G/8G Fibre Channel

• InfiniBand SDR/DDR/QDR
