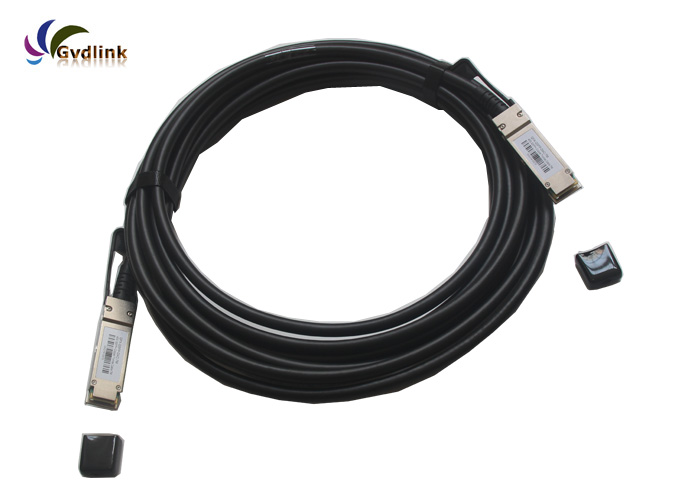

QSFP-H40G-CU7M Compatible 40G QSFP+ Active Direct Attach Copper Cable 7M

Description

The GVD-QSFP-40G-CU7M is an MSA compliant direct-attach copper QSFP+ cable that’s designed, programmed and tested to work in 40G network deployments. It delivers dependable 40 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.  

This passive Twinax cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. The cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

At 7 meters long and designed for high-speed performance, this copper QSFP+ cable is ideal for medium-distance applications such as across-rack network switch or server connections.

Features (Low Power Version)

• QSFP+ conforms to the Small Form Factor SFF8436
• Maximum aggregate data rate: 40Gb/s

• Copper link length up to 7M

• SONET SDH OC-192 / STM-64
• High-Density QSFP 38-PIN Connector

• Power Supply :+3.3V

• Power Consumption: <0.8W
• I2C based two-wire serial interface for EEPROM signature which can be customized
• Temperature Range: 0~ 70 °C
• ROHS Compatible
• Low crosstalk

​Our QSFP 40G DAC cables product series

Advantages

• Fully product line
• High Quality with ISO9001 , CE , TUV , FCC and RoHS certificates
• 100%tested
• very fast delivery
• 3 year Warranty

Applications

• Use in 40Gb Ethernet network applications
• Point-to-point in-rack and across-rack server or network switch connections
