Single Fiber SC/UPC ABS Box In+Out Add+Drop DWDM OADM 2 Channel
Description
DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module
offers high stable and reliable bandwidth in a cost-effective and
small package. DWDM Mux/Demux ITU Wavelength provides the ability
to consolidate your services over a single connection, whether
voice, data, or Internet. Use fiber wavelength is unrestricted,
allowing for increased control and scalability.
Features
- C Band
- 2-44 channels DWDM Mux/Demux (CH17-CH61)
- Channel spacing: 0.8nm(100GHz Grid C-Band)
- Protocol transparent (10Mbps to 100Gbps)
- Low insertion loss
- Excellent channel isolation
- Epoxy-free optical path
- Compliant to G.657A1 standard
- ISO 9001 manufacturing facility
- Wide Operating Temperature: -20~+70℃
Applications:
- Channel Add/Drop
- DWDM Network
- Wavelength Routing
- Fiber Optical Amplifier
- CATV System
Compliance:
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- ITU-T G.694.1
- RoHS
1xN DWDM Mux/Demux Module
| Parameters | |
| Channel Space (GHz) | 100 | 200 |
| Channel Number | 1*4 | 1*8 | 1*16 | 1*4 | 1*8 | 1*16 |
| Center Wavelength (nm) | ITU Grid |
| Center Wavelength Accuracy (nm) | ± 0.05 | ± 0.1 |
| Channel Passband (@-0.5dB) (nm) | 0.22 | 0.5 |
| Fiber Type | SMF-28e with 900um loose tube or customer specified |
| IL (dB) | 1.4 | 2.5 | 3.8 | 1.7 | 2.9 | 3.8 |
| Passband Ripple (dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 |
| Isolation (dB) | Adjacent Channel | 25 | 28 |
| Non-Adjacent Channel | 40 |
| PDL (dB) | 0.2 |
| PMD (ps) | 0.1 |
| RL (dB) | 45 |
| Directivity (dB) | 50 |
| Maximum Optical Power (mw) | 500 |
| Operating Temperature (°C) | -20~70 |
| Storage Temperature (°C) | -40~85 |
| BOX Package (mm) | 100*80*10 or 140*115*18 |
| LGX Package | 1U,2U |
| 19’’ Rack mount Package | 1U |
What we supply

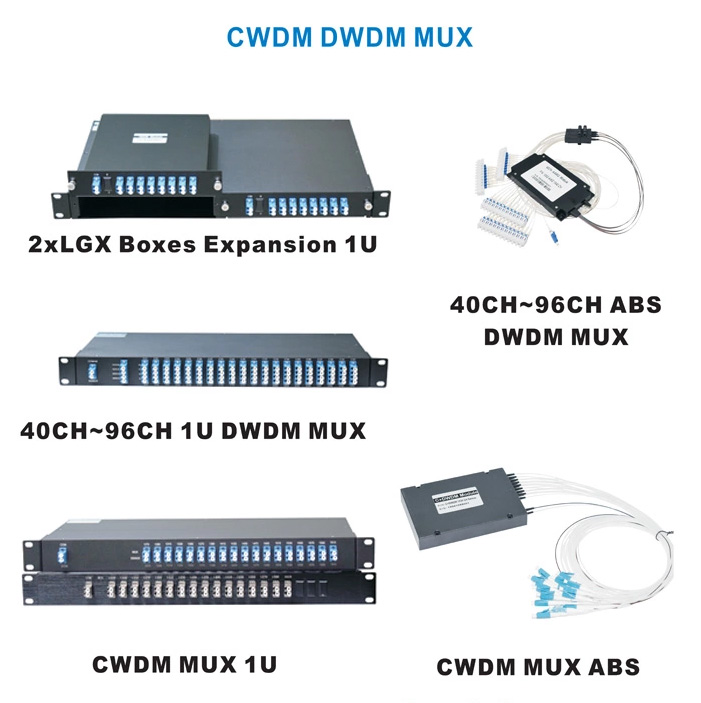

Our standard package types of DWDM Module 40ch are Field Module ABS
Plastic Box, 19" Rack Mount Chassis and LGX Metal Cassette Box. We
also supply custom package to meet customers' requirements. All the
DWDM MUX and Demux provide excellent optical performance and high
reliability to ease of fiber handling and power saving solution.
DWDM Mux/Demux Solution
1.Single Fiber DWDM Mux/Demux Solution
Expansion Port - For Future Bandwidth Increasing
Expansion port makes it possible to increase the network capacity
by connecting it to the line port of another DWDM MUX/DEMUX
supporting different wavelengths, without the need of installing or
leasing additional fibers.
Our quality control syestem
Our cerfitication
Hybrid DWDM over CWDM Network
CWDM wavelengths range from 1260-1625nm, channel spacing is 20nm,
which actually cover all the range of DWDM wavelengths
(1470-1625nm). And DWDM wavelengths have much smaller channel
spaces (0.4nm/0.8nm). Therefore, the CWDM wavelengths near DWDM
wavelengths can be used to transmit the DWDM wavelengths.
