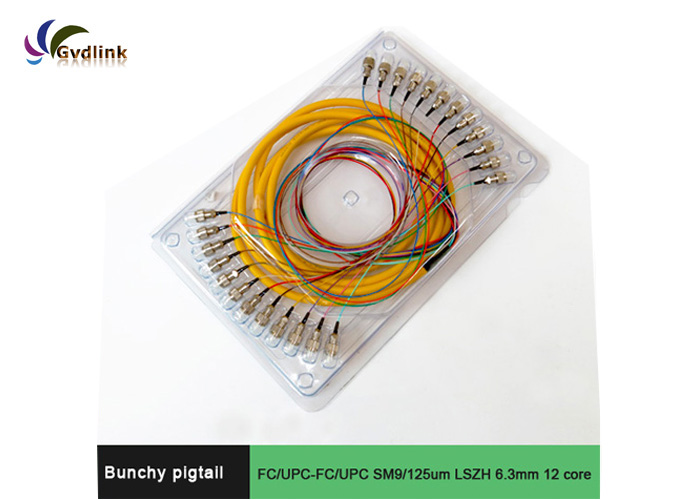

What is Fiber Pigtail?

A fiber pigtail usually has an optical connector pre-installed at one end where occur the fusion spliced into a single fiber of a multi-fiber trunk. Pigtails can have female or male connectors. Fiber optic pigtails are usually unjacketed in order to be spliced and then protected in a fiber splice tray.

What is Fiber Patch Cord?

A patch cable, also called patch cord or patch lead is an electrical or optical cable used to connect one electronic or optical device to other. The connectors of a patch cord can be installed at the ends with the same type of connector or different ones, for example, it can have an SC connector at the two sides, or it can have an SC connector at one side and an LC connector at the other one. Fiber optic patch cords are jacketed can come in simplex (1 fiber), duplex (2 fibers), or in MPO (12 fibers).

Feature

• Low insertion loss and high return loss
• Good repeatability & interchangeability
• Suitable for high-speed, high-capacity optical fiber transmission system
• PC, UPC, APC polishing; FC, SC, ST, LC, MU connector
• Provide single mode/ multimode patch cord and pigtails
• all detail can be according to customers’ demands

Application
•Optical Fiber Amplifier
•CATV Optical Fiber Link
•Fiberoptic System Testing

•Telecommunications Systerm

Our product show

Shenzhen Gaveid communication Technology Co.,Ltd was founded in 2008 . We design , develop , manufacture and distribute the optical product to satisfy customer 's need for optical communication in Ethernet , SDH/SONET , Video monitor , FTTH , telecommunication , CATV system etc . Currently Gvdlink can offer the complete product lines including SFP , SFP+ , XFP , QSFP , DWDM , CWDM etc., From 155M~100G optical fiber transceiver , And DWDM , CWDM MUX/DEMUX Passive solution , We also provide cable , optical cord , network card and POE switch for the networking sulotion . We provide to our customers with our high-performance , cost-effective products to fulfill their requirements , contributing this way to the customer ' s success and satisfaction .
