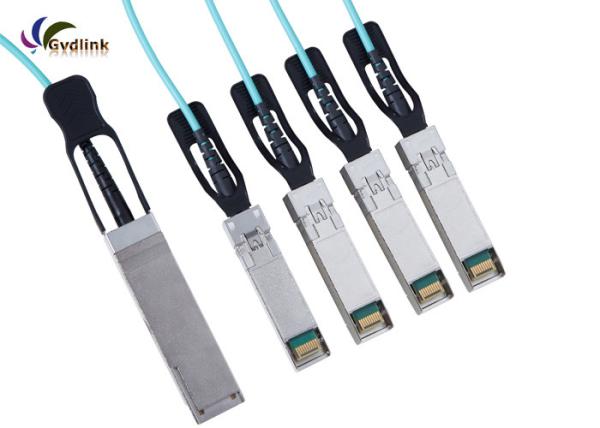

QSFP-4X10G-AOC1M Compatible 40G QSFP+ to four 10G Active Optical Cable 1m

Description

Gvdlink 40G QSFP+ to 4XSFP+Active Optical cable is an assembly of 4 full-duplex lanes and each lane is capable of transmitting data at rates up to 10.3Gb/s , providing an aggregated rate of 41.2Gb/s . The length is up to 300 meters using OM3 MMF .

Features

• Hot-pluggable QSFP+ form-factor connectors
• 4 channels full-duplex active optical cables
• Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4

• 4x 850nm VCSEL array and PIN photo-detector array

• Differential AC-coupled high-speed data interface

• Data rate up to 41.2Gbps

• Length is 1m
• Power consumption < 1.5W per end
• 3.3V power supply voltage
• Operating case temperature range from 0°C to 70°C
• RoHS compliant (lead free)

​Our QSFP 40G Active optical cables product series

Advantages

• 100%tested
• High Quality with ISO9001 , CE , TUV , FCC and RoHS certificates
• Fully product line
• 3 year Warranty
• very fast delivery

Applications

• 40 and 10 Gigabit Ethernet

• InfiniBand 4x SDR , DDR , QDR

• Fiber Channel Fiber Channel over Ethernet

• SAS , Servers , Hubs , Switches , Routers

Shipment

International Express DHL , UPS , SF , EMS , TNT , FedEx and so on . It takes 1-7 days.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts all new materials . All the optical transceivers have been passed functional test and aging test . We will provide 3 year warranty for all the optical transceivers from the date of shipment .

Our product line show

Shenzhen Gaveid communication Technology Co.,Ltd was founded in 2008 . We design , develop , manufacture and distribute the optical product to satisfy customer 's need for optical communication in Ethernet , SDH/SONET , Video monitor , FTTH , telecommunication , CATV system etc . Currently Gvdlink can offer the complete product lines including SFP , SFP+ , XFP , QSFP , DWDM , CWDM etc., From 155M~100G optical fiber transceiver , And DWDM , CWDM MUX/DEMUX Passive solution , We also provide cable , optical cord , network card and POE switch for the networking sulotion . We provide to our customers with our high-performance , cost-effective products to fulfill their requirements , contributing this way to the customer ' s success and satisfaction .
