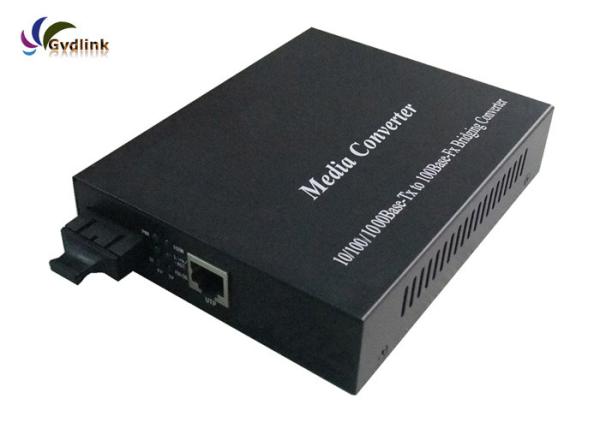

Media converter one 10/100/1000Base-T RJ45 port one 1000Base-SX / LX Fiber port​

Description

Gvdlink ’ s media converters are designed to convert between 10BASE-T/100BASE-T and 100BASE-FX,
and between 1000BASE-T and 1000BASE-SX/1000BASE-LX . The media converters work at a full
wire-speed forwarding rate and fit conveniently into a GVD-MC1400 chassis for easy storage .

Features

• Support one 10/100/1000Base-T Gigabit Ethernet UTP port and one 1000Base-SX / LX Gigabit Ethernet Fiber port
• Support 802.3x flow control for full-duplex ports and backpressure for half-duplex ports
• Support comprehensive types of fiber with different distances and connections , including SC/Bidi/LC and so on

• Support auto mode on TP port

• Fully compatible with CISCO , HP , 3COM equipment.
• Low power consumption design , low heat dissipation for stable working

• Support inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX

• Support full-duplex and half-duplex , auto-negotiation
• Support automatic cross connection of twisted pair interfaces , facilitating system commissioning and installation
• Support the transmission of extra-long VLAN packets
• Support Quality of Service (QoS) and ensuring the transmission of VoIP packets
• Support STP to form a redundant network
• Options in single mode dual fiber , multi-mode dual fiber, and single mode in single fiber
• Multi Mode transmission distance:550M , Single Mode transmission distance : up to 80KM
• Slide-in design optional , can be installed into HT100-2U-16 rack chassis
• With wall mountable hole for industrial application
• LFP(Link fault pass-through) Function , with DIP switch for setting
• RoHS compliant

Advantages

• Fully product line
• High Quality with ISO9001 , CE , TUV , FCC and RoHS certificates
• 100%tested
• 3 year Warranty
• very fast delivery

Applications

• Switched fabric I/O such as ultra high bandwidth switches and routers

• High capacity I/O in Storage Area Networks, Network Attached Storage , and Storage Servers

• Data center cabling infrastructure

• High density connections between networking equipment
