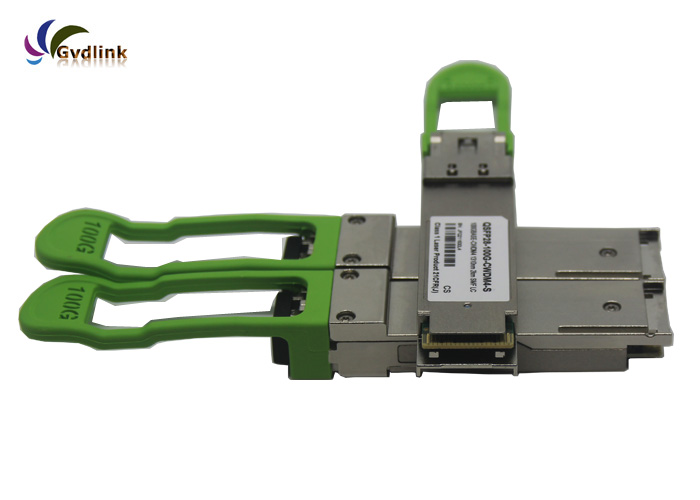

02312UJN QSFP-100G-CWDM4-500 Compatible QSFP 100GBASE-CWDM4 500m
transceiver
The Huawei 02311MNN QSFP-100G-CWDM4 Compatible QSFP28 Optical
Transceiver Module is designed for use in 100GBASE Ethernet
throughput up to 2km over single mode fiber (SMF) with duplex LC
connectors. The 100 Gigabit Ethernet signal is carried over four
wavelengths at 1271, 1291, 1311, 1331 nm. This transceiver is
compliant with IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA,
SFF-8665, SFF-8636 and ITU-T G.694.2 standards. Digital diagnostics
functions are also available via the I2C interface, as specified by
the QSFP28 MSA, to allow access to real-time operating parameters.
With these features, this easy to install, hot swappable
transceiver is suitable to be used in various applications, such as
data centers, high-performance computing networks,enterprise core
and distribution layer applications.
Description
| item | Description |
| Part number | 02311MNN QSFP-100G-CWDM4 |
| Version support | Supported in V200R001C00 and later versions |
| Transceiver form factor | QSFP28 |
| Transmission speed | 100GE |
| Center wavelength (nm) | 1295, 1300, 1304, 1309 |
| Standards compliance | 100GBASE-CWDM4 |
| Connector type | LC |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| Applicable cable and maximum transmission distance | Single-mode fiber (G.652) (with diameter of 9 μm): 10 km |
| Modal bandwidth | - |
| Transmit power (dBm) | -6.5 to +2.5 |
| Maximum receiver sensitivity (dBm) | -9.8 |
| Overload power (dBm) | 2.5 |
| Extinction ratio (dB) | ≥ 3.5 |
| Operating temperature | 0°C to 70°C |
Applications
Advantages
- High Performance and Reliability
- ≤3.5W low power consumption, saving power
- Dual CDR (TX and RX)
- MTBF over 708,800,000 hours
- Stainless steel material, anti-corrosion, and salt spray resistance
Huawei QSFP28 100G Product series
| Part number | Model | Description |
| 02311KNU | QSFP28-100G-LR4 | 100GBASE LR4 QSFP LC 10km |
| 02311MNM | QSFP28-100G-PSM4 | 100GBASE-PSM4 QSFP 500m |
| 02311GBW | QSFP28-100G-SR4 | 100GBASE-SR4 850nm 100m |
| 02313EEK | QSFP28-100G-BIDI | 100G PAM4 BiDi 850/910nm 100m |
| 02311MNP | QSFP-100G-CLR4 | 100GBASE-CLR4 1271/1291/1311/ 1331nm 2km |
| 02311MNN | QSFP-100G-CWDM4 | 100GBASE-CWDM4 1271/1291/1311/ 1331nm 2km |
| 02312UJN | QSFP-100G-CWDM4-500 | 100GBASE-CWDM4 1271/1291/1311/ 1331nm 500m |
| 02311UPS | QSFP-100G-LR4-Lite | 100GBASE-LR4 1295/1300/1304/1309nm 2km |
| 02312DAT | QSFP-100G-eCWDM4 | 100GBASE-eCWDM4 1271/1291/1311/1331 10km |
| 02311YXR | QSFP-100G-ER4-Lite | 100GBASE-ER4 1295/1300/1304/1309nm 40km |
| 02311QUK | QSFP-100G-SWDM4 | 100G-SWDM4 850nm 100m |
Guarantee
We provide 3 years warranty for all the optical transceivers from
the date of shipment .
Our products are compatible with Cisco , Ciena , H3C , Extreme , HP
,Foundry , Avaya , D-link , Alcatel , Riverstone , Enterasys ,
Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei , etc .
Please Note
Installing a third party transceiver does not void your network
equipment warranty. Network equipment manufacturers all have
guidelines stating that warranty support on their products will not
be affected.
