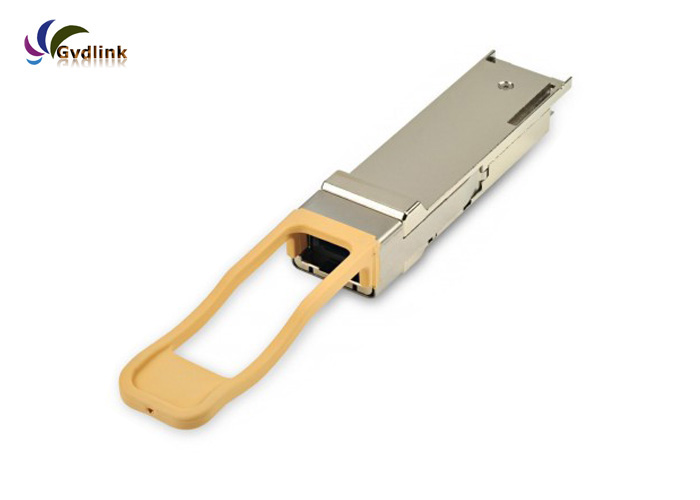

02311QUK QSFP-100G-SWDM4 Compatible QSFP 100GBASE-SWDM4 850nm 100m transceiver

The HW 02311QUK QSFP-100G-SWDM4 Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

Description

Wide Application

• Fully compatible with almost all HW devices
• Widely used on 100G switches, routers, servers, NICs and other transmission equipment
• Suitable for telecom, data center, high-performance computing networks, etc.

High Performance and Reliability

• High quality MACOM chip
• ≤1.8W (Typical) low power consumption
• MTBF over 12,800,000 hours
• Dual CDR (TX and RX) Stainless steel material, anti-corrosion, and salt spray resistance
